With Antrum, you don't have to exchange energy efficiency for clean air. Our central air monitoring system ensures peak airflow when needed and conserves energy when it's not.
All the benefits of central air monitoring - without the unnecessary complications.
20 years ago, the introduction of central air monitoring was nothing short of transformative—but with this new technology came a fresh set of headaches. Maintaining these systems was complicated, tedious, and. expensive. Antrum was founded on the conviction there had to be a simpler way.
AntrumX consists of three main components—an air accelerator, zone faceplates or duct probes, and a monitoring panel—all connected by simple tubing for easy installation. The panel includes a pre-programmed gateway for BMS integration and a ventilation dashboard tailored for critical environments, with no special hardware or software needed.
Air Accelerator

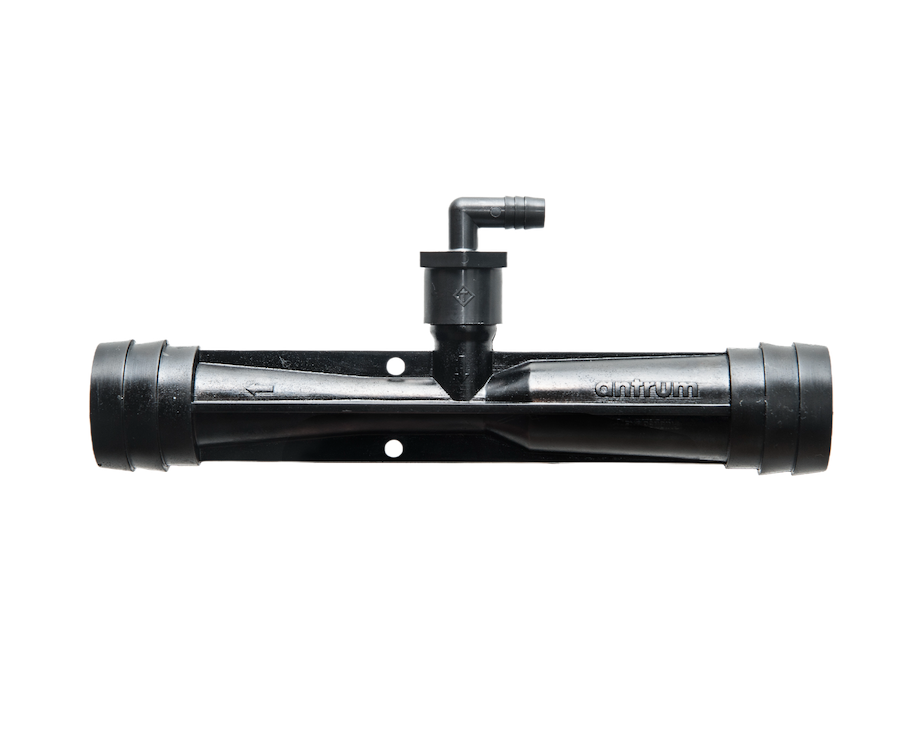

A patented air accelerator uses building supply pressure of the existing HVAC system to create a continuous vacuum in every room. There are no moving parts on the air accelerator and therefore no energy input to the system other than the negligible parasitic loss on the supply and exhaust fan motors.
Zone Pickup

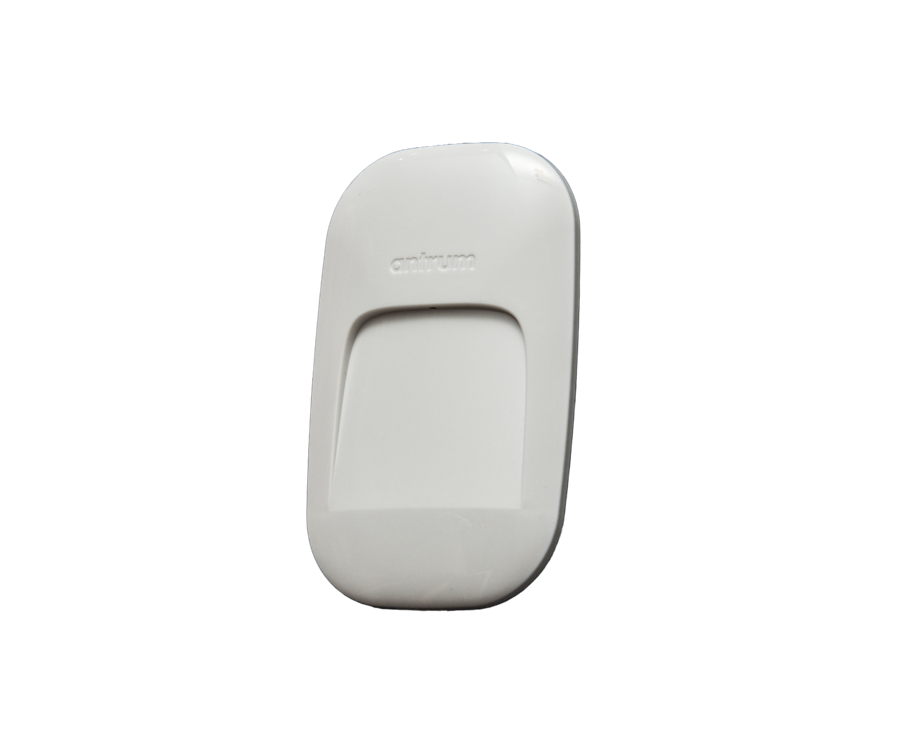

Choose from wall-mounted or duct-mounted pickups to capture air samples from each space – delivered to the centrally located sensor pack through 1/4″ lab-grade tubing.
Monitoring Panel

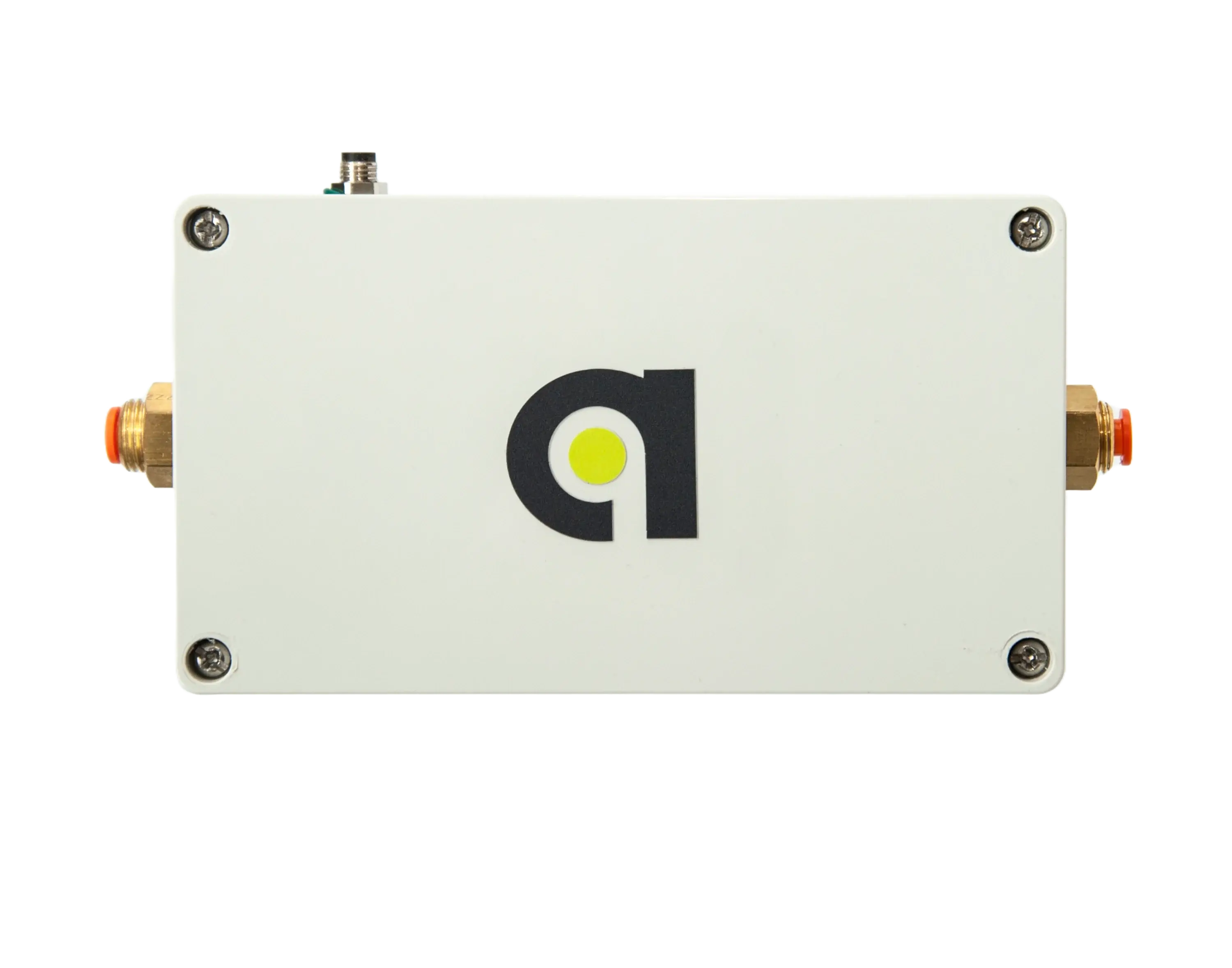

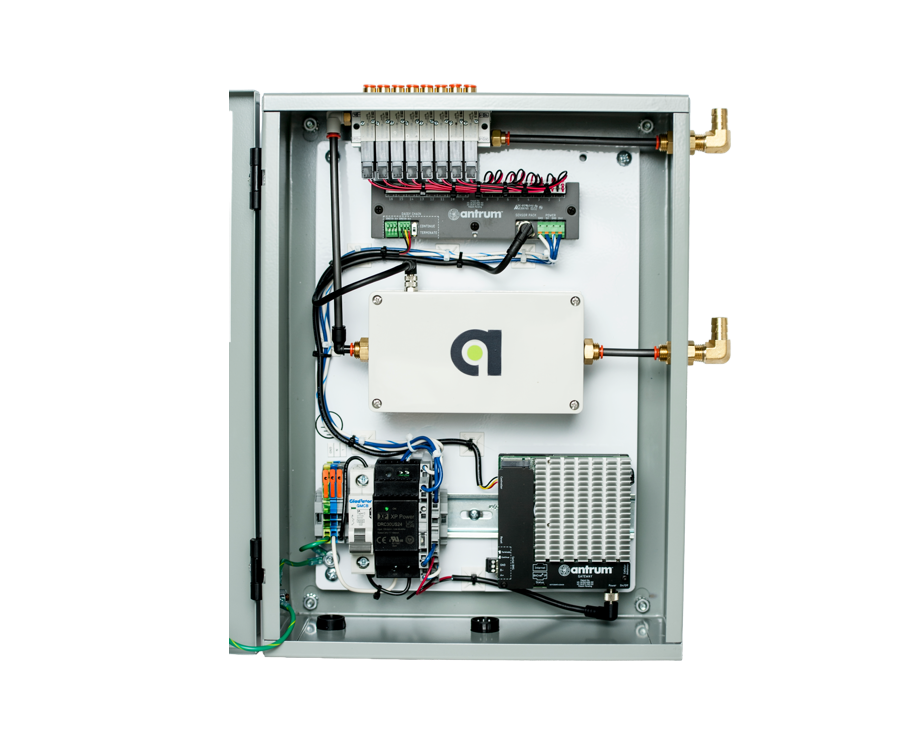

Located in the mechanical room and easily accessible, the monitoring panel houses the the Antrum sensor pack and gateway. The ability to monitor a variety of IAQ parameters from a single location results in more accurate data, which leads to significant maintenance and energy savings.
Air quality data at your fingertips

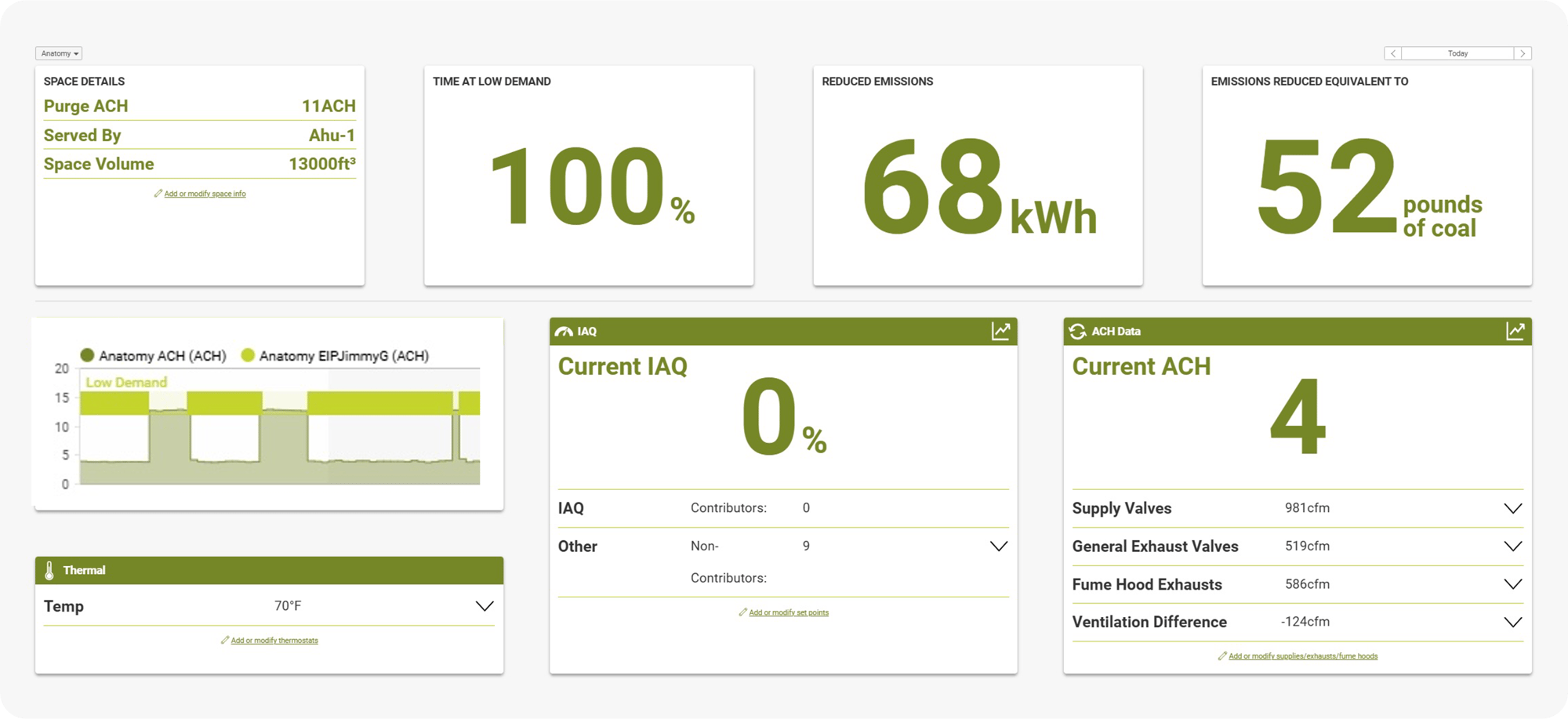

AntrumEYE software illuminates the space-level IAQ data measured by AntrumX. The smart analytics dashboard is accessible on a computer or mobile device, delivering critical IAQ data anywhere, anytime. AntrumEYE comes standard with AntrumX.
Easy to install
AntrumX is installed without any special software, equipment, or tools. To install:
Route tubing from the faceplate in each monitored space back to the monitoring panel.
Connect air accelerator between the ductwork and the monitoring panel. Panel requires 120V power, BMS, and an ethernet connection. NO additional wiring.
